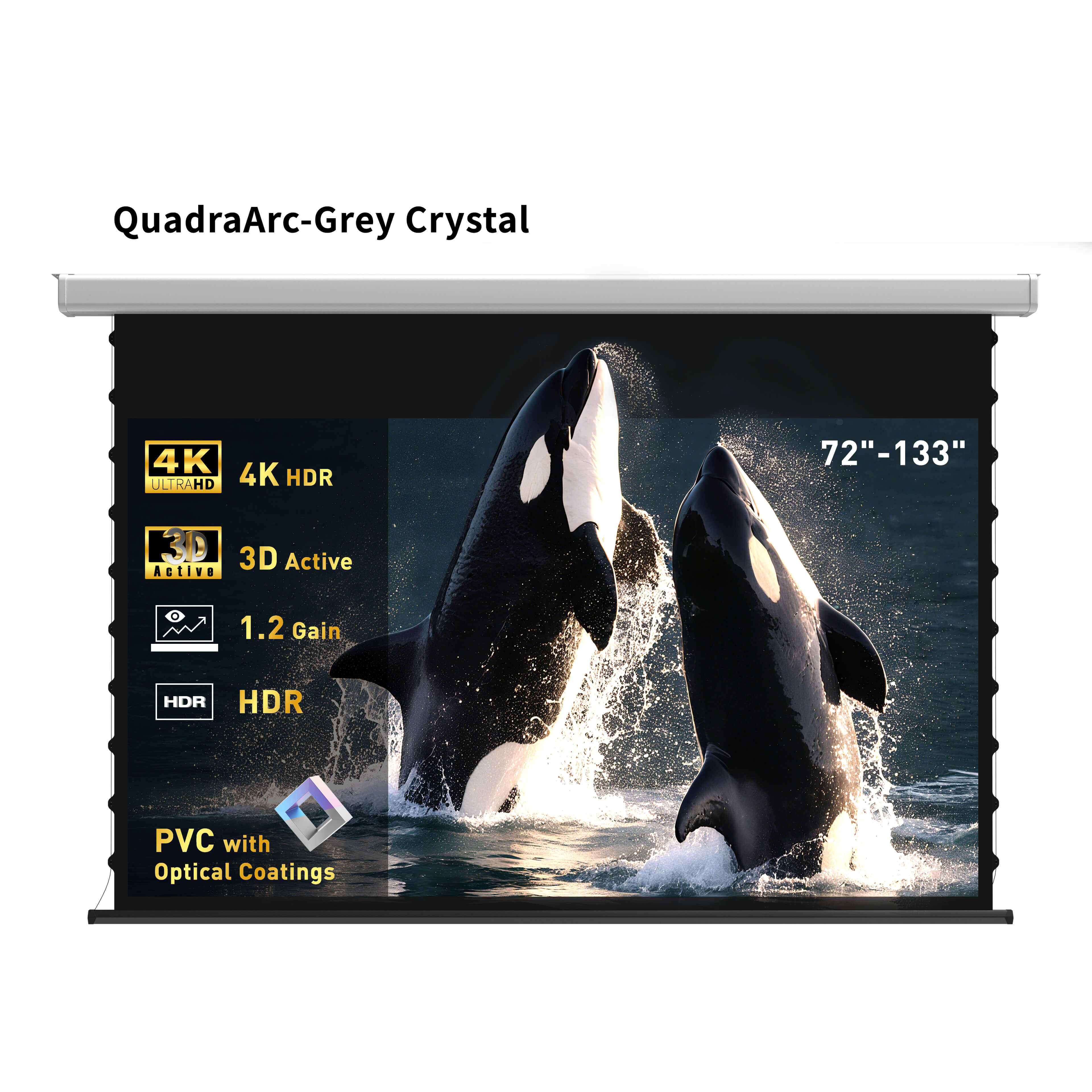

Easily Wired Panel or Wireless Remote
Sleek and Concise Square made from High Quality Electroplated Steel
Versatile Sizes Available from 72” to 133”

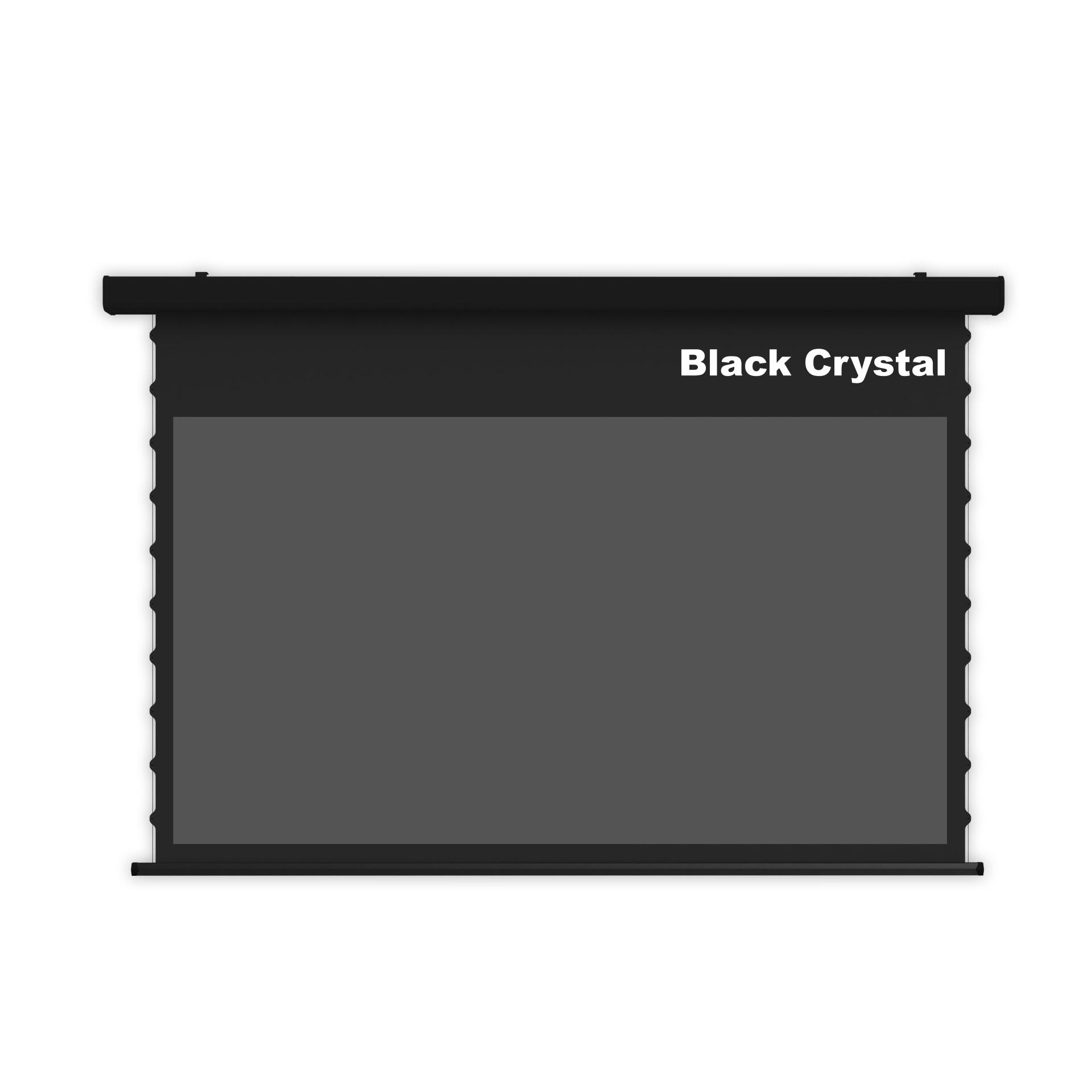

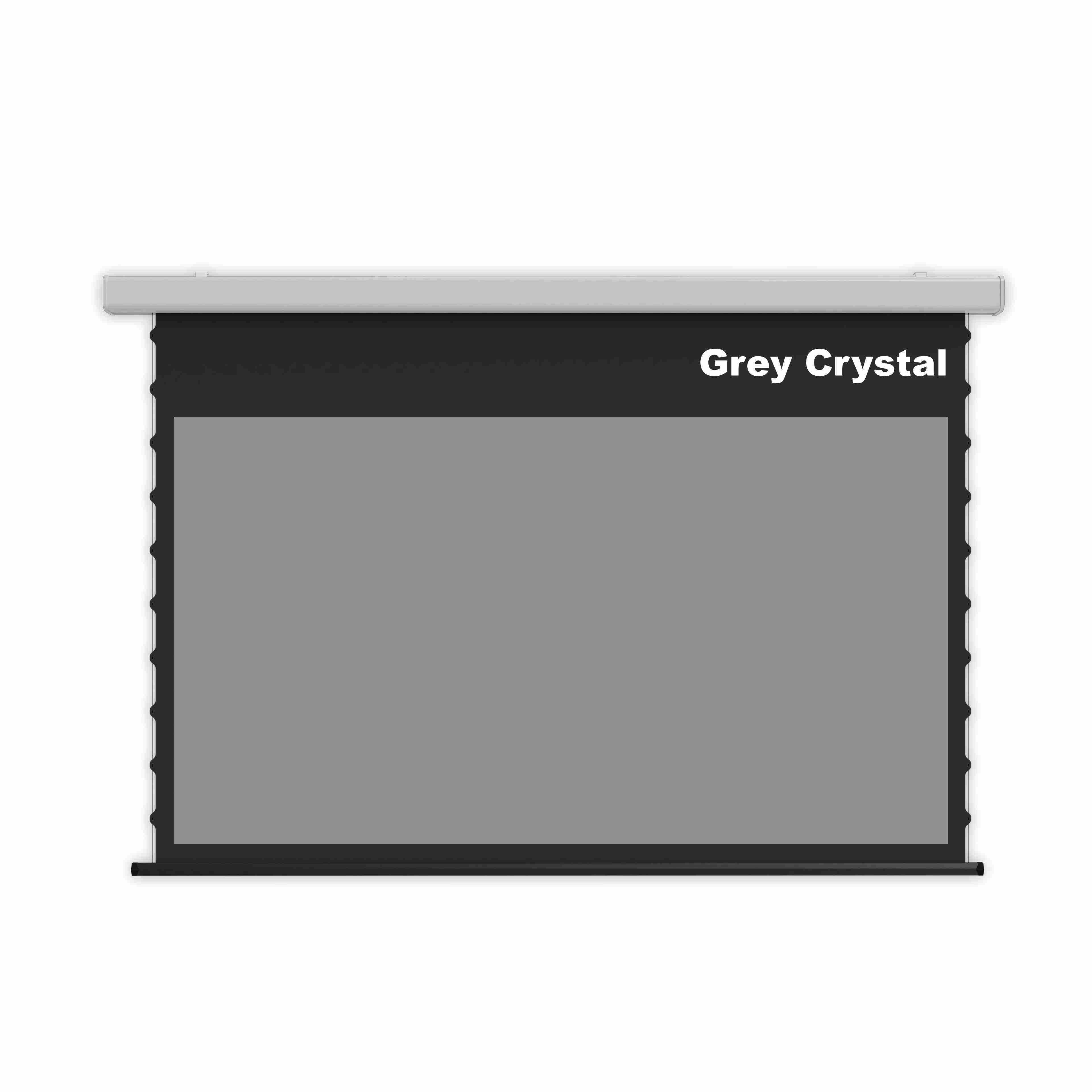

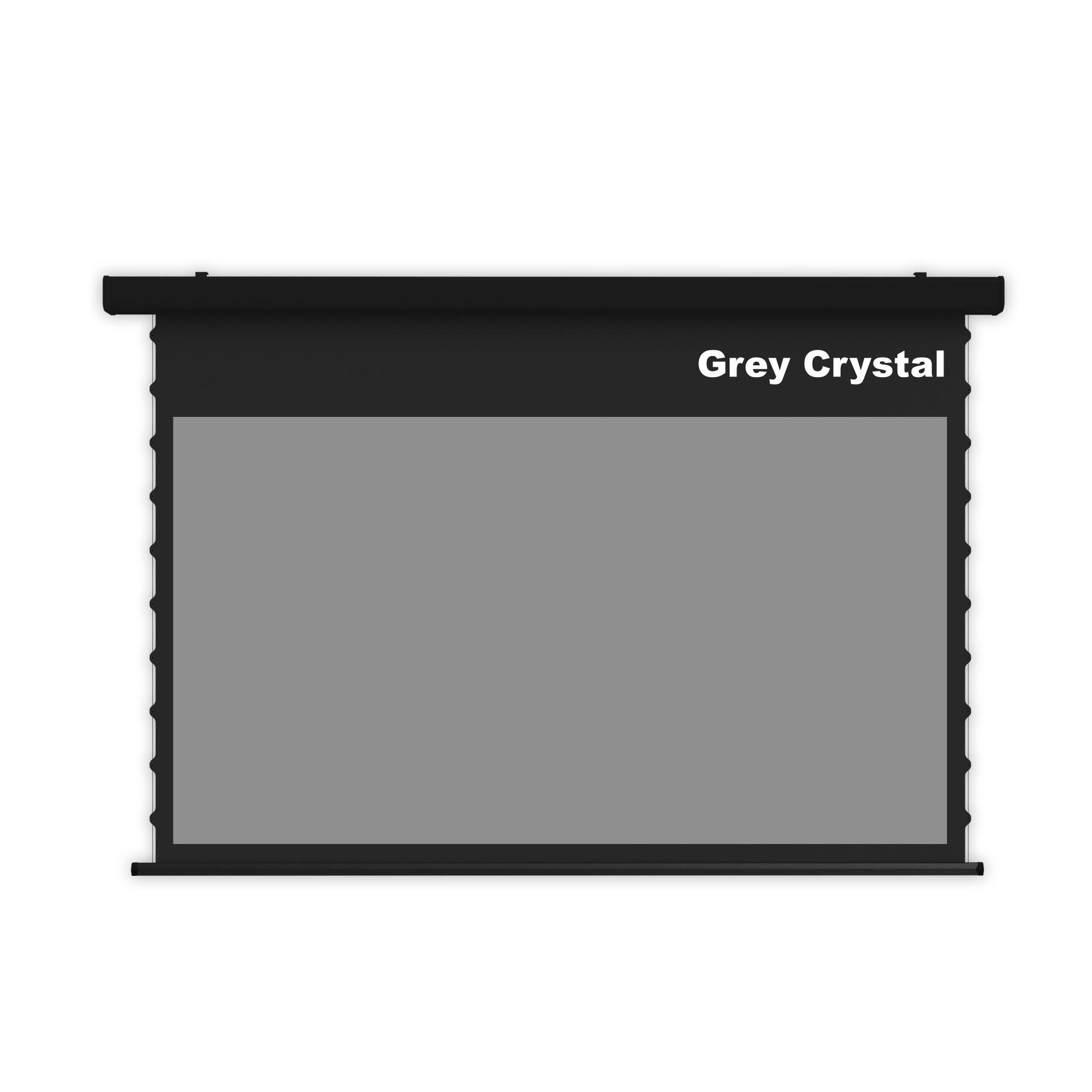

Multiple Screen Fabric Optional
Outstanding ALR up to 70%
Gain up to 1.2
Compact Packaging, Saving More
Powered and Silent Tubular Motor
General Information
| Place of Origin: | China |
| Brand Name: | Wupro Cinema |
| Model Number: | QuadraArc |
| Certification: | FCC, CE, RoHS |
| MOQ: | ≥1 |
| Delivery Time: | 5-7 days |
| Payment Terms: | EXW, FCA, FOB, CFR, CIF, DAP, DDP |
| Supply Ability: | 1,000 pcs / Month |
Specification
| Model Name | Wupro Cinema QuadraArc Smart Motorized Drop Down Screen |
| Model Number | QuadraArc |
| Applicative Type | Standard Throw |
| Mounting Base | Yes |
| Hooks or Rigging | Yes |
| Installation Method | Wall Mount / Ceiling Mount |
| Control Method | Remote Control / Control Panel |
| Tab-Tension | Optional Based on Screen Fabric |
| Casing | Quality Electroplated Steel Square Casing |
| Screen Fabric | PVC |
| Color | Based on Screen Fabric |
| Ratio | 16:9 |
| Thickness | 0.32-0.52mm |
| Gain | 0.7-1.8 |
| ALR | 0%-70% |
| Viewing Angle | 160° |
| Black Border | Yes |
| Type | Tubular Motor |
| Rated Torgue | 10 N.m |
| Rated Speed | 17 RPM |
| IP Grade | IP44 |
| Noise Level | ≤48 dB |
| Overheat Protection | Automatically activate when operating continuously for 4 minutes |
| Power Supply | 230V/50Hz, 0.485A,115W / 120V/60Hz, 1.1A,115W |
| Lifting Speed | 6cm / S |
| Limit Control | Max. Rising Position, Upper Limit & Lower Limit |
| Operating Temp. | -20- 60℃ |
| Smart Interaction | None |

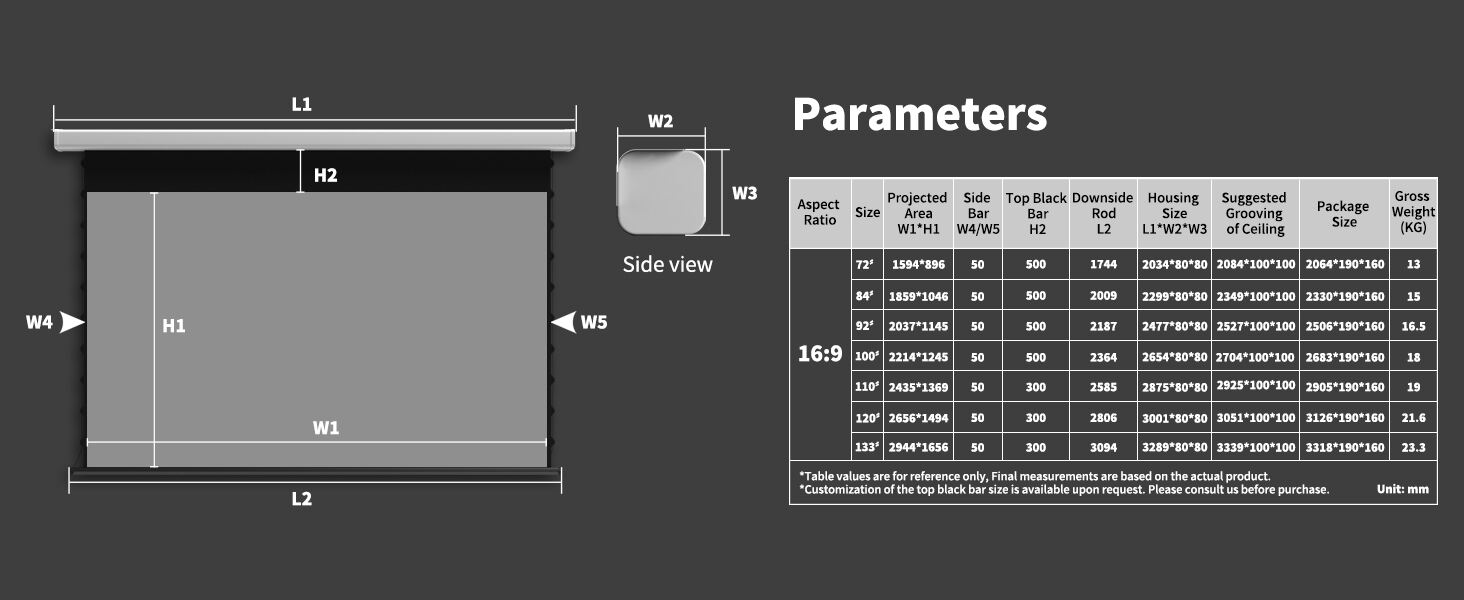

| Screen Size | projection area（mm) | A/B/C Black Border (cm) | D Black Border (cm) | Buttom Bar(mm) | Housing Size (mm） | Recommended Slot Size (mm) | Packge Size(mm) | G.W.(KG) |
| 72"16:9 | 1594*896 | 5 | 50CM | 1744 | 2034*80*80 | 2084*100*100 | 2064*190*160 | 13 |
| 84"16:9 | 1859*1046 | 5 | 50CM | 2009 | 2299*80*80 | 2349*100*100 | 2330*190*160 | 15 |
| 92"16:9 | 2037*1145 | 5 | 50CM | 2187 | 2477*80*80 | 2527*100*100 | 2506*190*160 | 16.5 |
| 100"16:9 | 2214*1245 | 5 | 50CM | 2364 | 2654*80*80 | 2704*100*100 | 2683*190*160 | 18 |
| 110"16:9 | 2435*1369 | 5 | 30CM | 2585 | 2875*80*80 | 2925*100*100 | 2905*190*160 | 19 |
| 120"16:9 | 2656*1494 | 5 | 30CM | 2806 | 3001*80*80 | 3051*100*100 | 3126*190*160 | 16.6 |
| 133"16:9 | 2944*1656 | 5 | 30CM | 3094 | 3289*80*80 | 3339*100*100 | 3318*190*160 | 23.3 |
