Easily Wired Panel or Wireless Remote
Support Amazon Alexa, Google Home, and Tuya Smart

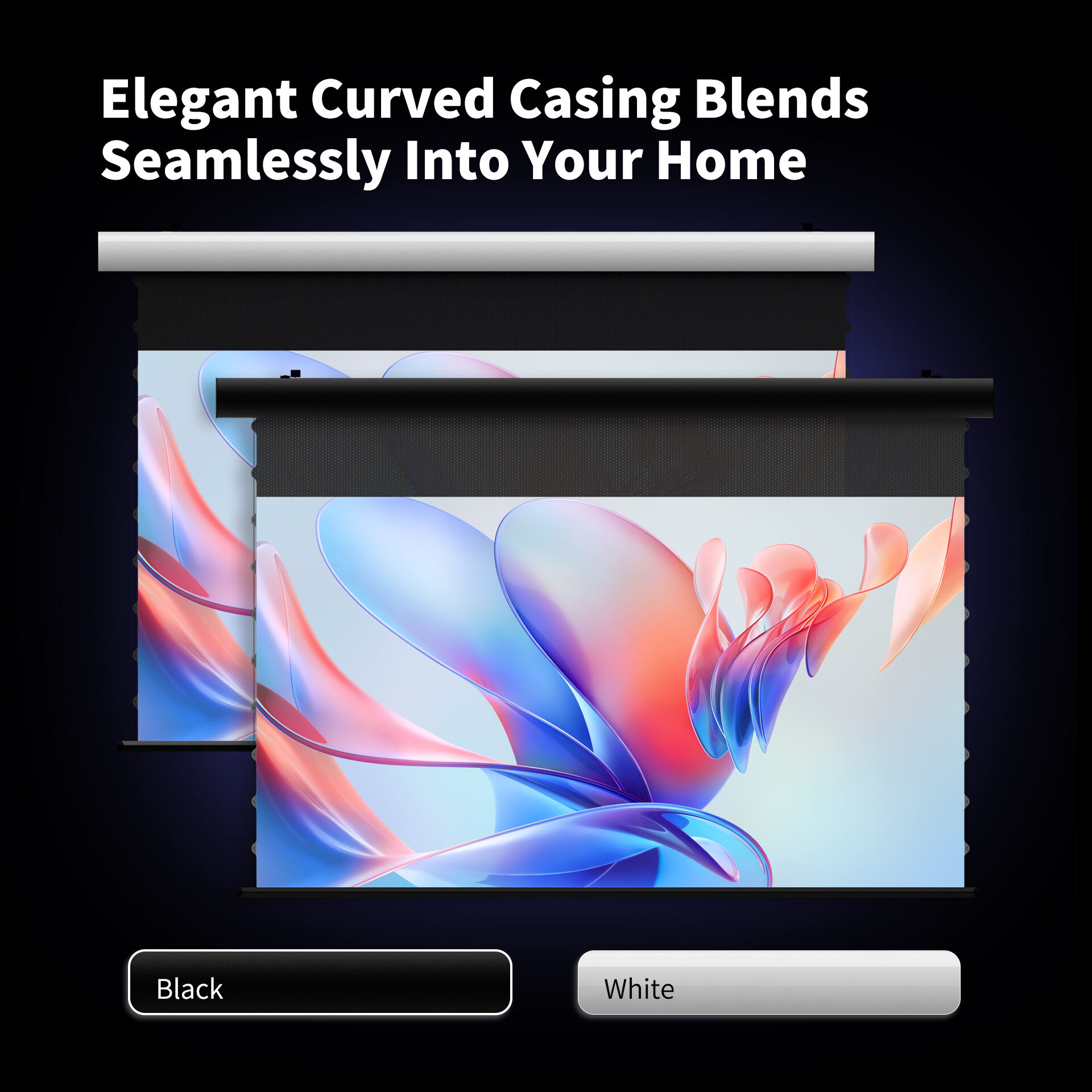

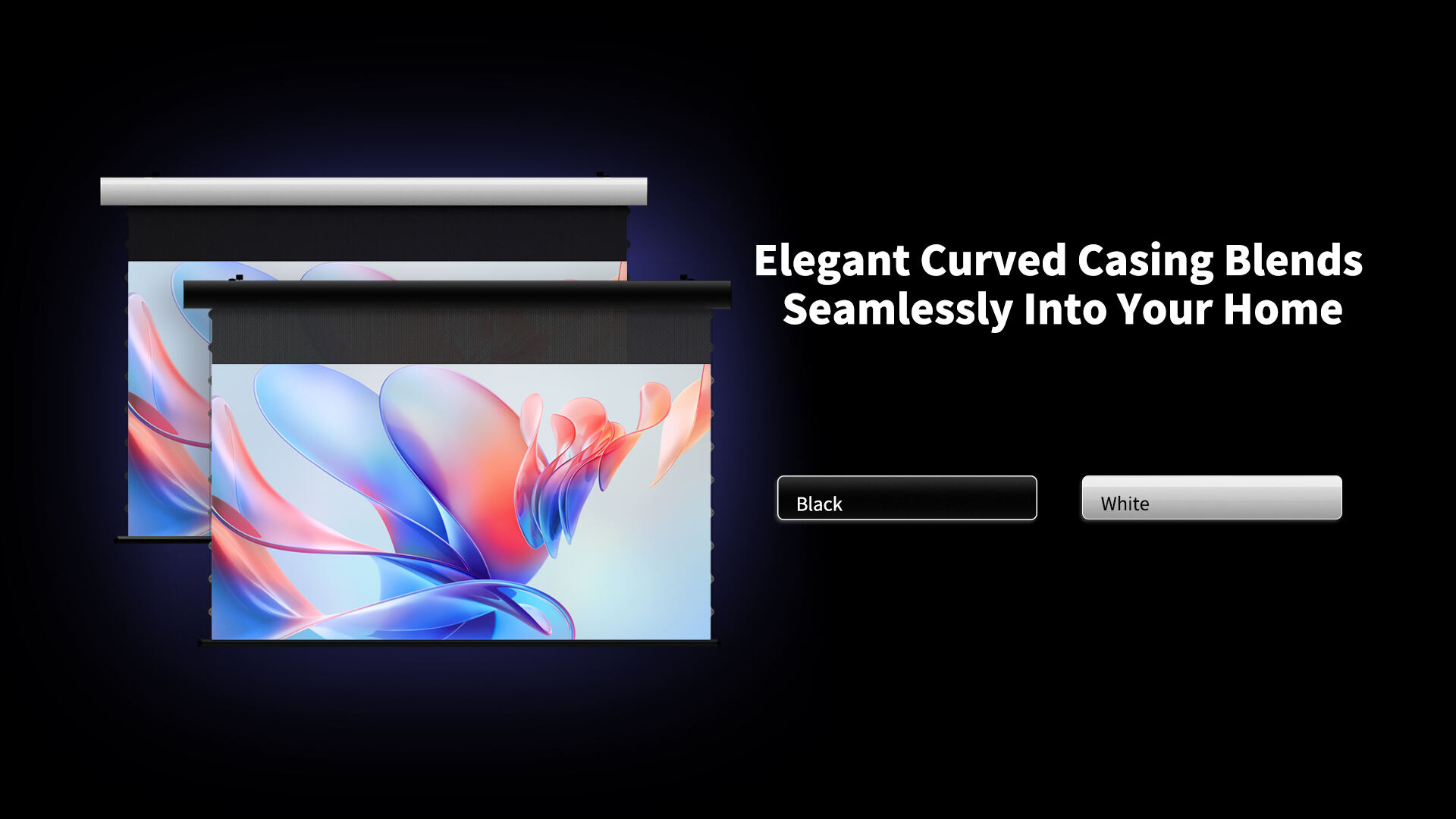

Luxurious Streamlined Casing, High-quality Aluminum Alloy
Versatile Sizes Available from 72” to 120”
Enhanced Contrast up to 1.5

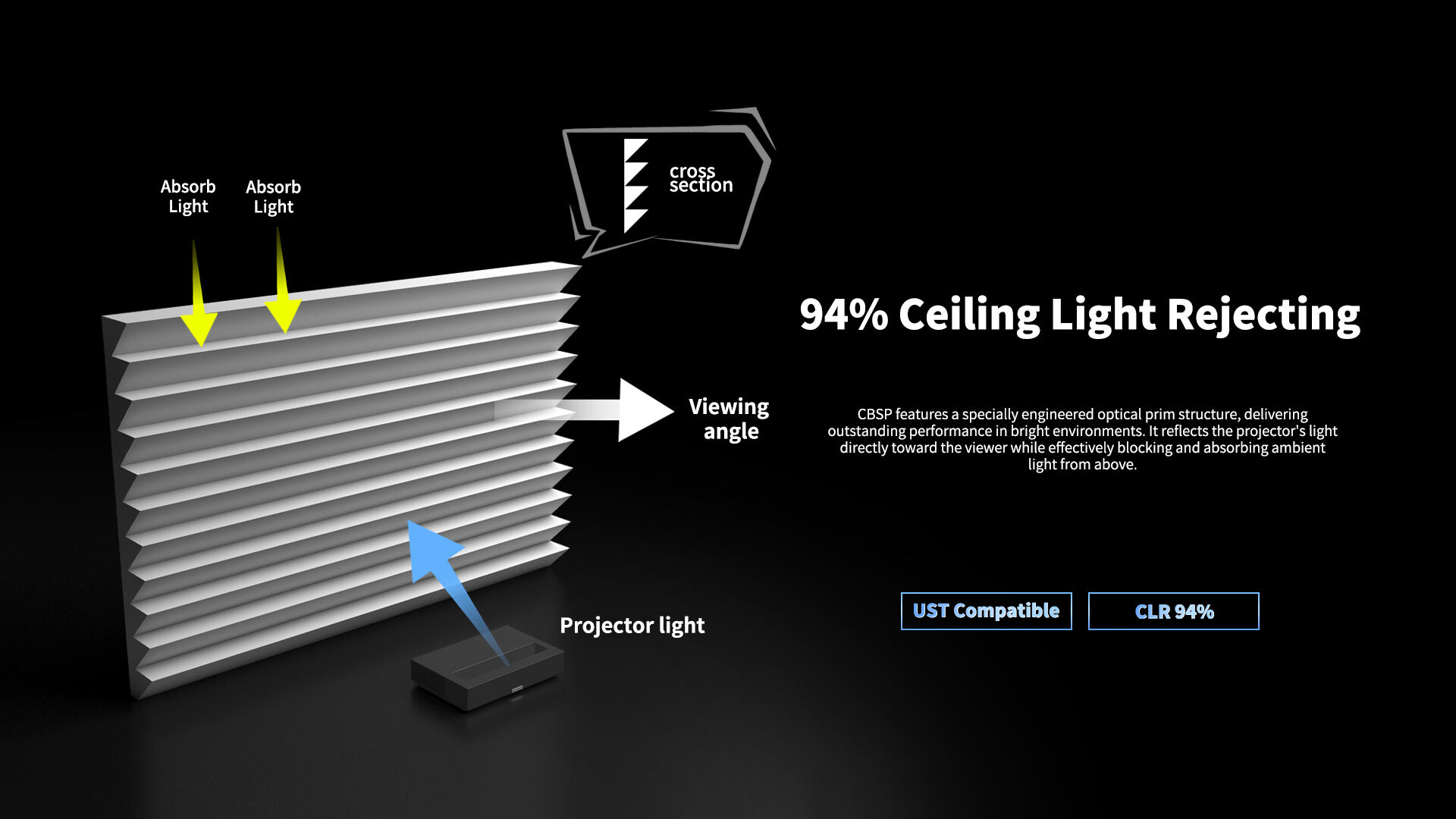

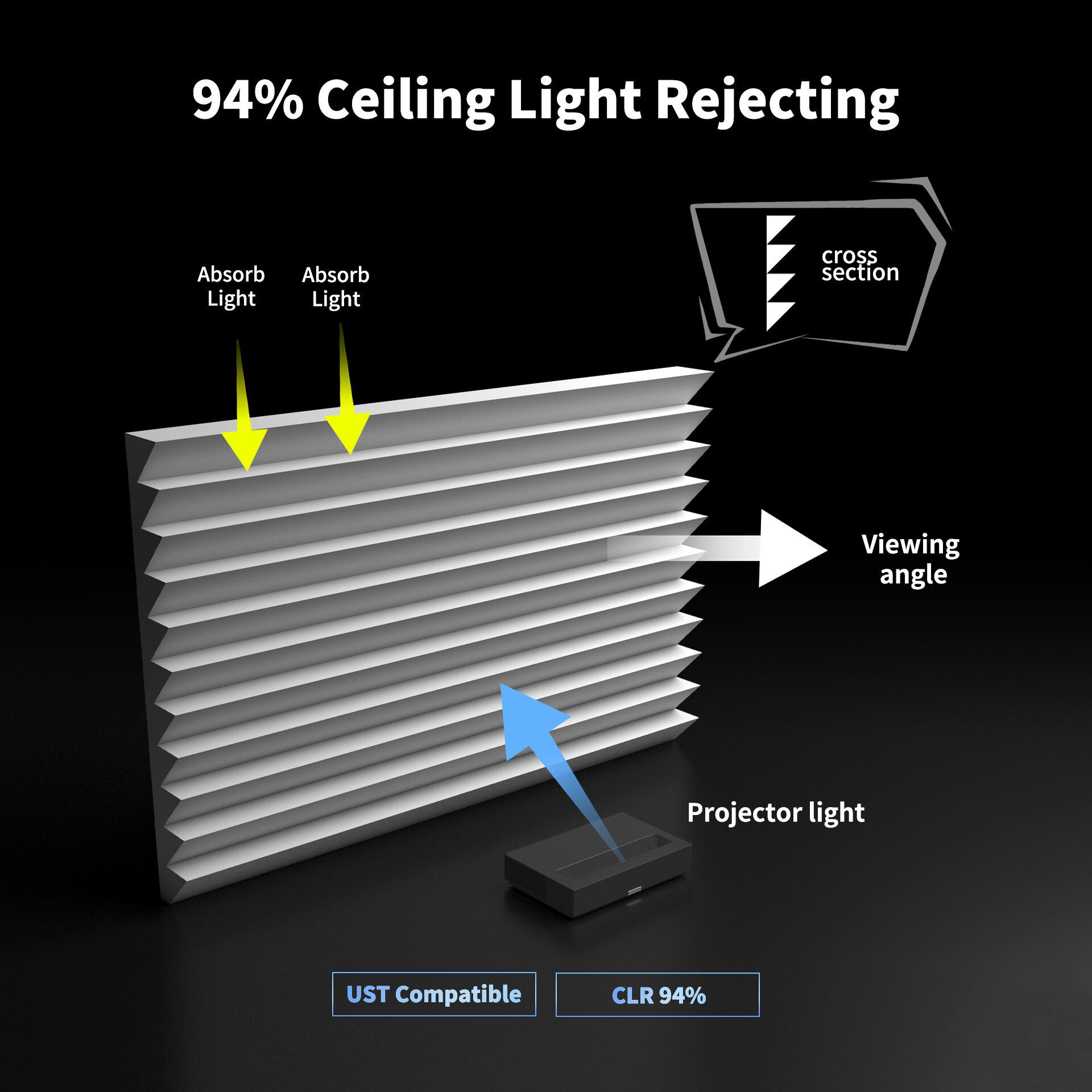

Outstanding ALR up to 94%
Gain up to 0.8
Compact Packaging, Saving More
Powered and Silent Tubular Motor
General Information
| Place of Origin: | China |
| Brand Name: | Wupro Cinema |
| Model Series: | FlowArc |
| Certification: | FCC, CE, RoHS |
| MOQ: | ≥1 |
| Delivery Time: | 5-7 days |
| Payment Terms: | EXW, FCA, FOB, CFR, CIF, DAP, DDP |
| Supply Ability: | 1,000 pcs / Month |
Specification

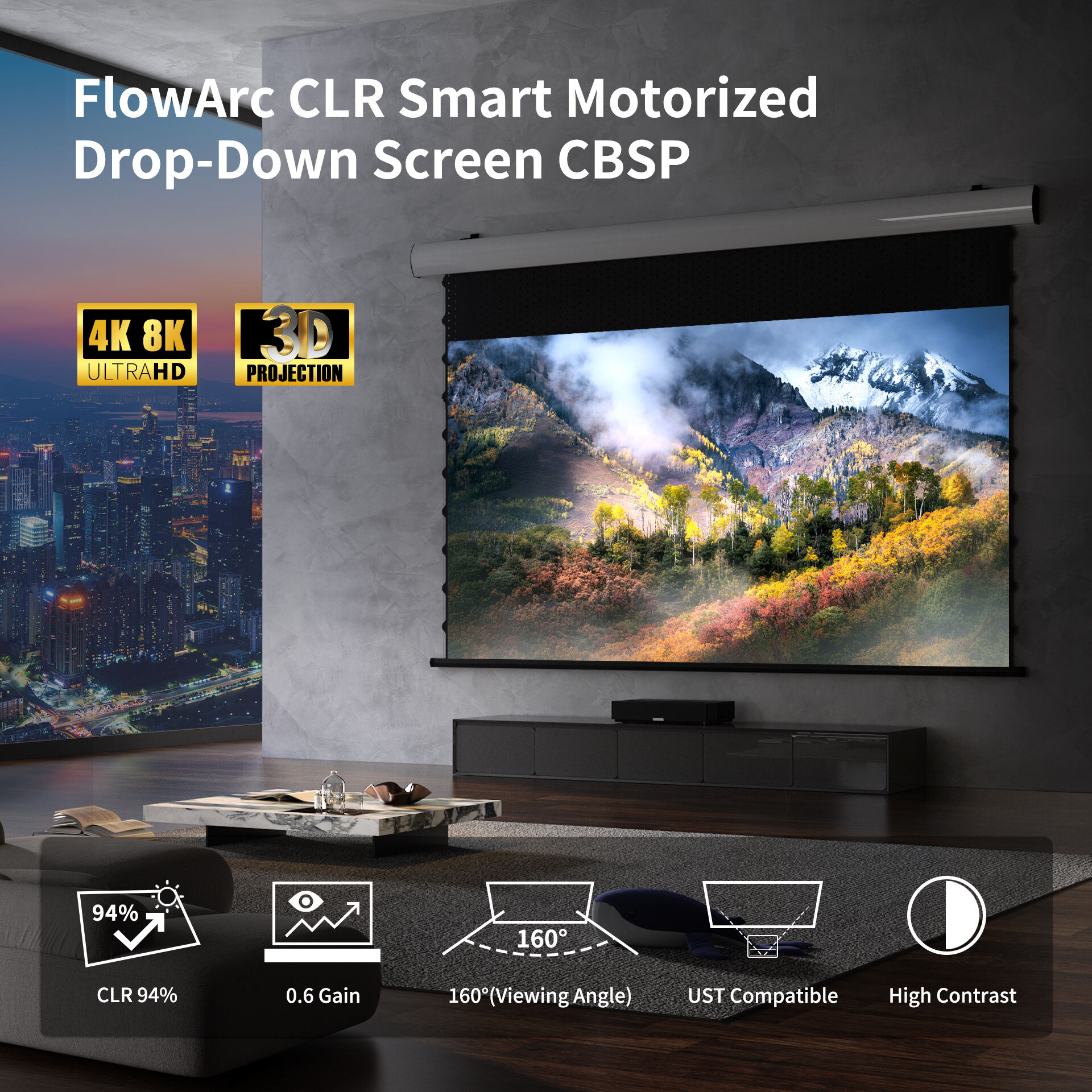

| Model Name | Wupro Cinema FlowArc Smart Motorized Drop Down Screen |
| Model Series | FlowArc |
| Mounting Base | Yes |
| Hooks or Rigging | Yes |

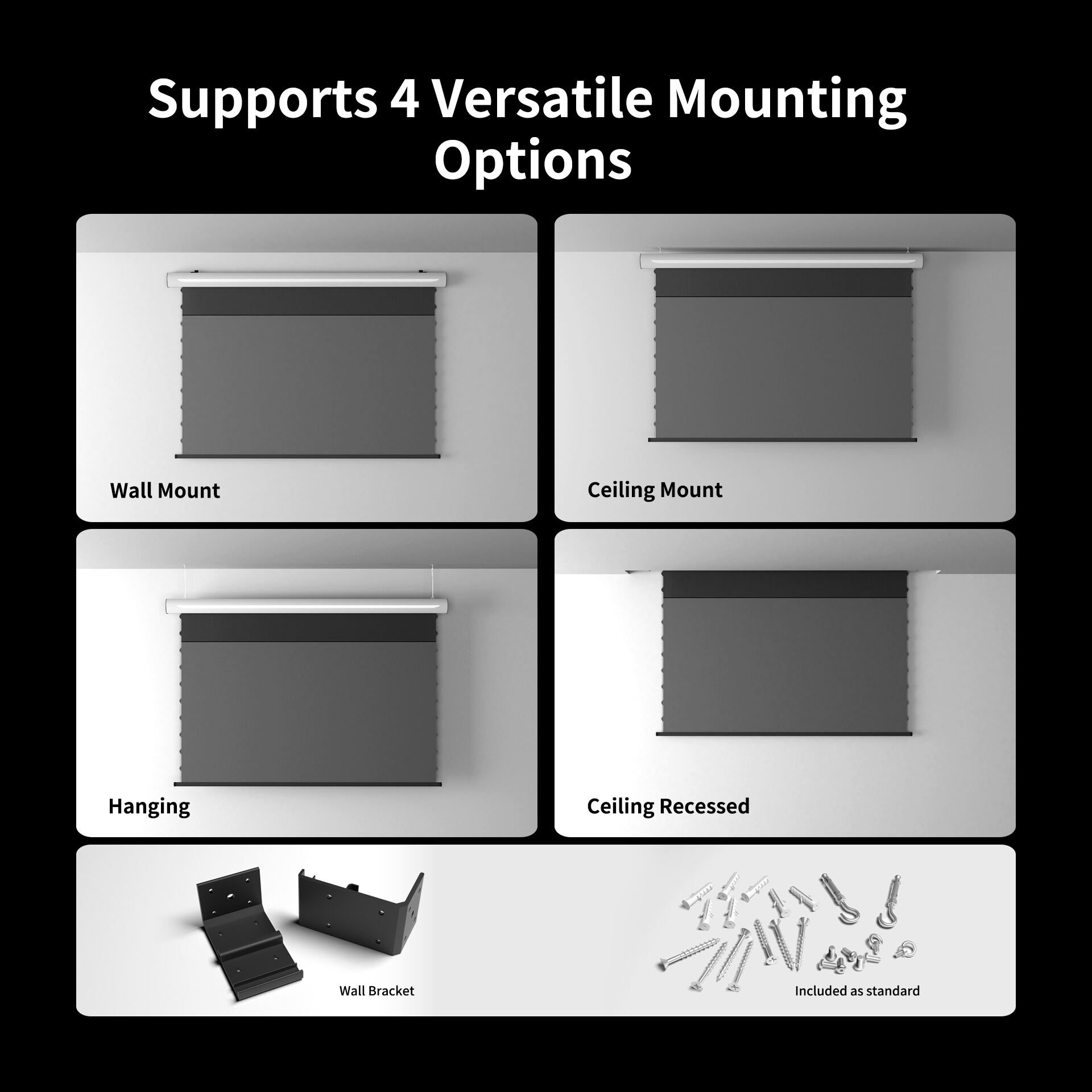

| Installation Method | Wall Mount / Ceiling Mount |
| Applicative Type | Ultra Short Throw & Standard Throw |
| Control Method | Remote Control / Control Panel / Voice Control |
| Tab-Tension | Optional Based on Screen Fabric |
| Casing | Aluminum Alloy |
| Material | PET Crystal |
| Color | Based on Screen Fabric |
| Ratio | 16:9 / 16:10 / 4:3 |
| Thickness | 0.32-0.49mm |
| Gain | 0.6-1.8 |
| ALR | 90%-94% |
| Contrast | 1.3-1.5 |

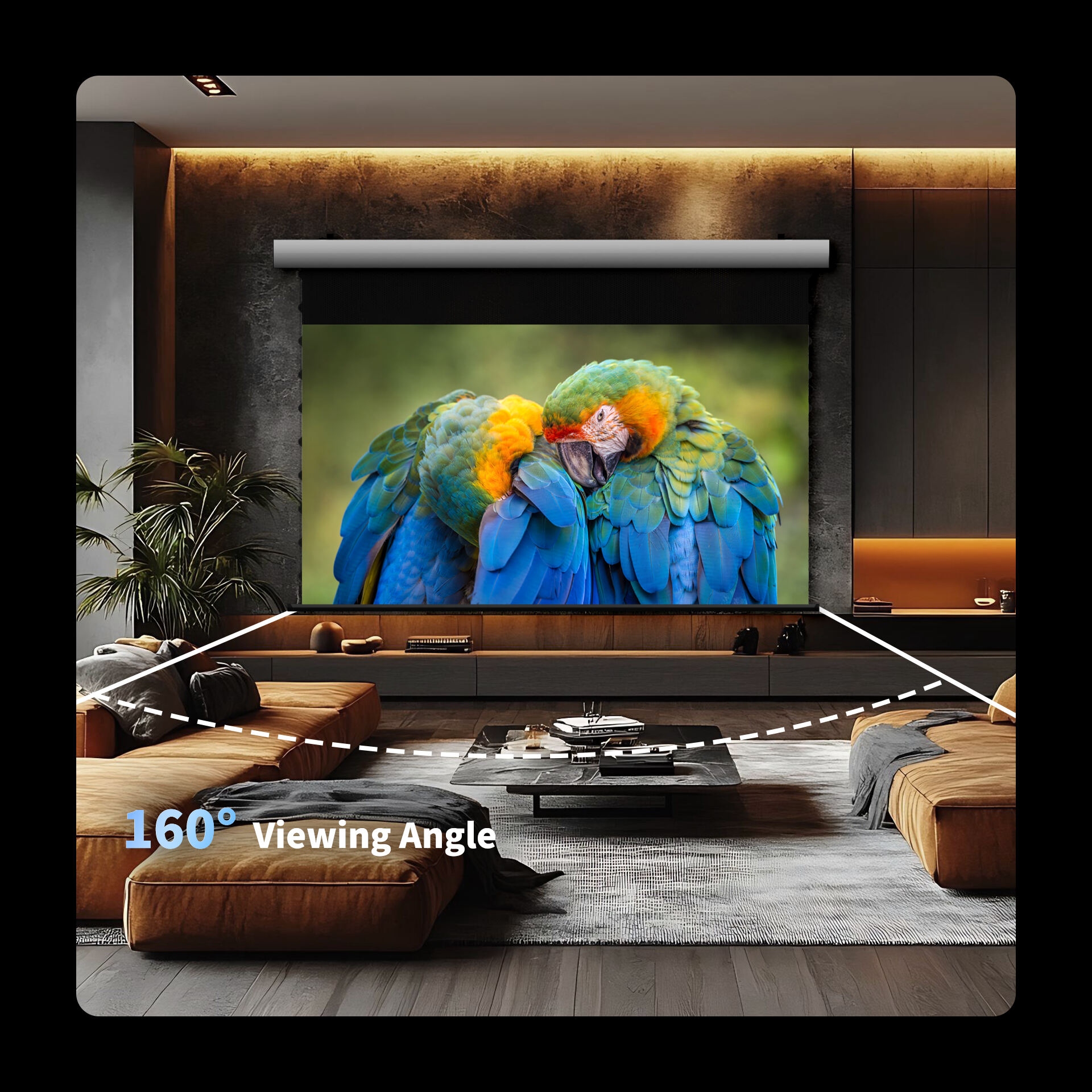

| Viewing Angle | 160° |
| Black Border | Yes |
| Type | Tubular Motor |
| Rated Torgue | 10 N.m |
| Rated Speed | 17 RPM |
| IP Grade | IP44 |
| Noise Level | ≤48 dB |
| Overheat Protection | Automatically activate when operating continuously for 4 minutes |
| Power Supply | 230V/50Hz, 0.485A,115W / 120V/60Hz, 1.1A,115W |
| Lifting Speed | 6cm / S |
| Limit Control | Max. Rising Position, Upper Limit & Lower Limit |
| Operating Temp. | -20- 60℃ |
| Smart Interaction | Remote Control, Amazon Alexa, Google Assistant, Tuya Smart |

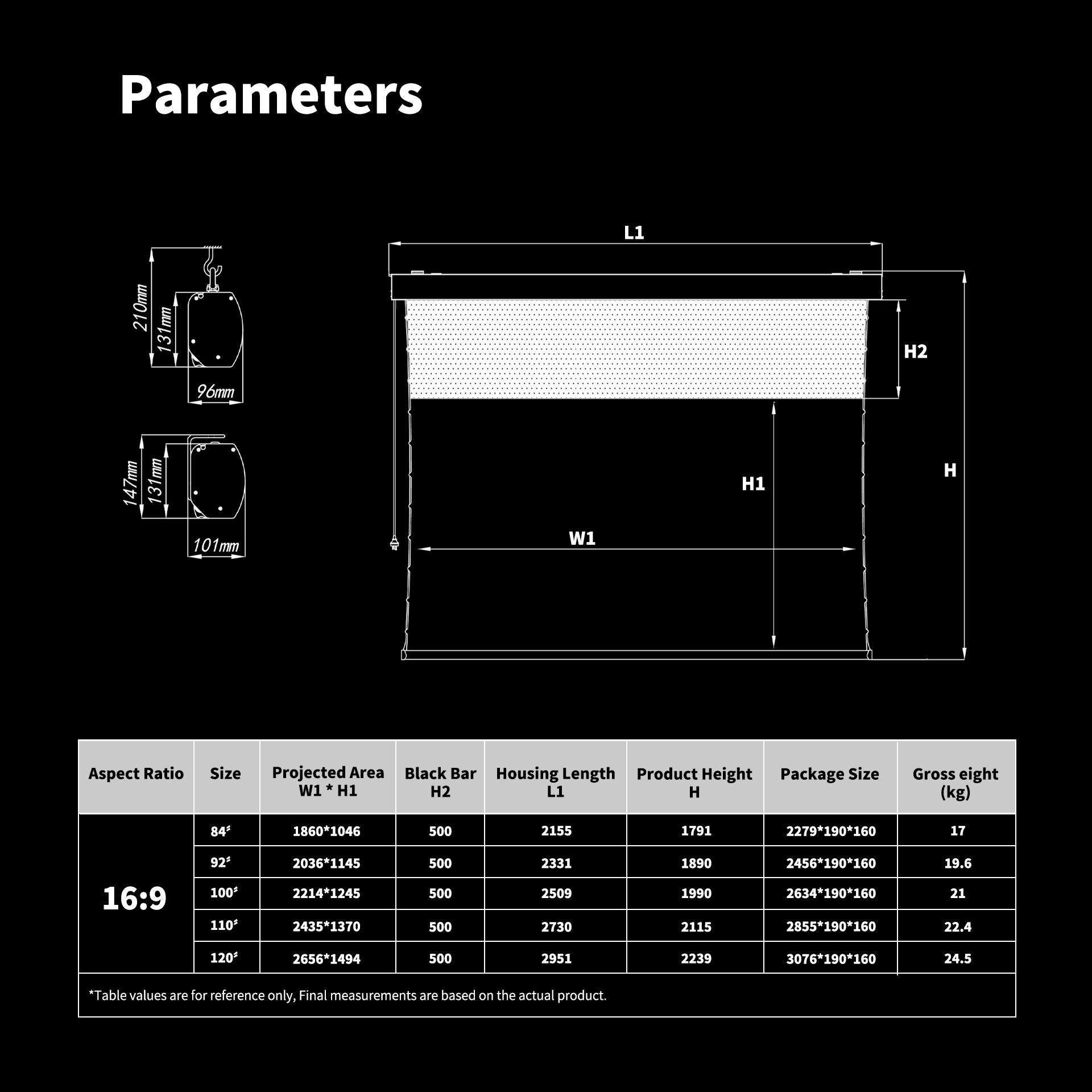

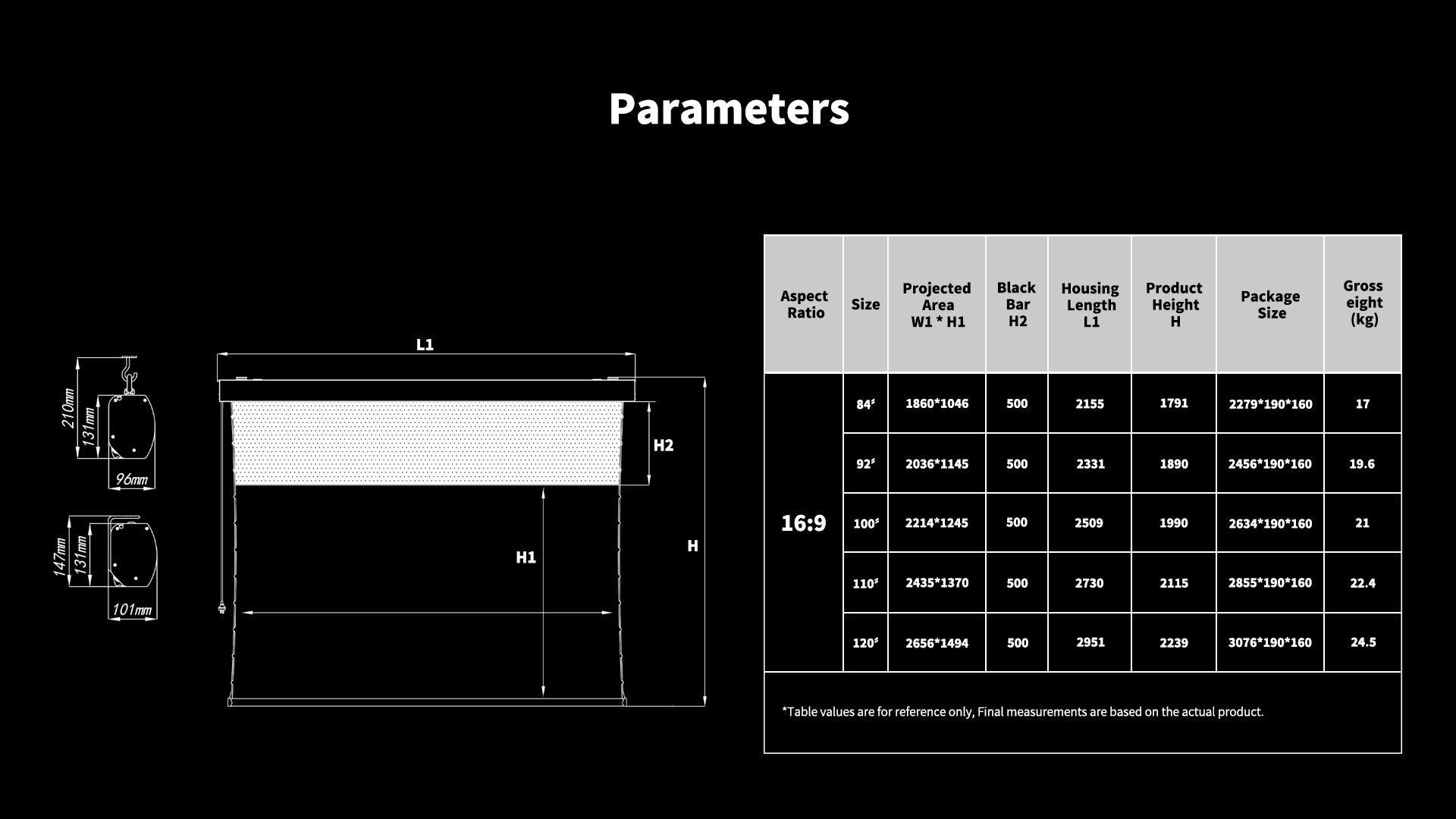

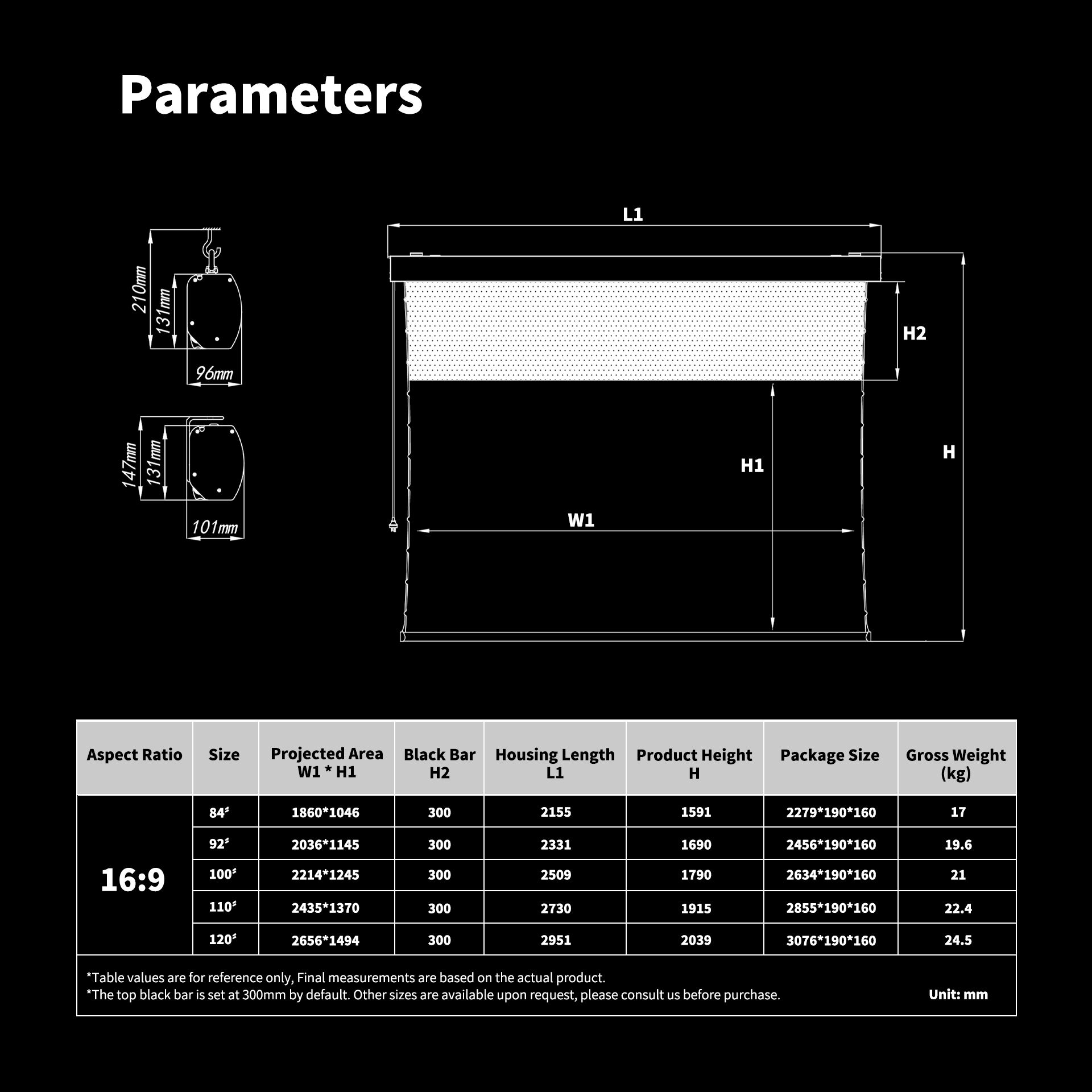

| PRODUCT PARAMETER | ||||||||||||
| Tab-Tensioned(CBSP PET Crystal) | ||||||||||||
| Ratio | Size | Projection Length (mm) | Projection Width (mm) | Upper Black Border (mm) | Left & Right Border (mm) | Bottom Black Border (mm) | Product length (mm) | Package Length (mm) | Package Width (mm) | Package Height (mm) | Net Weight (kg) | Gross Weight (kg) |
| 16:9 | 100" | 2214 | 1245 | 300 | 50 | 35 | 2614 | 2800 | 230 | 180 | 18.5 | 22.3 |
| 16:9 | 120" | 2656 | 1494 | 300 | 50 | 35 | 2956 | 2980 | 230 | 180 | 20 | 24 |
|
CBSP supports screen sizes from 72 to 120 inches. Please note: the specifications above are for reference only — actual details may vary. | ||||||||||||
