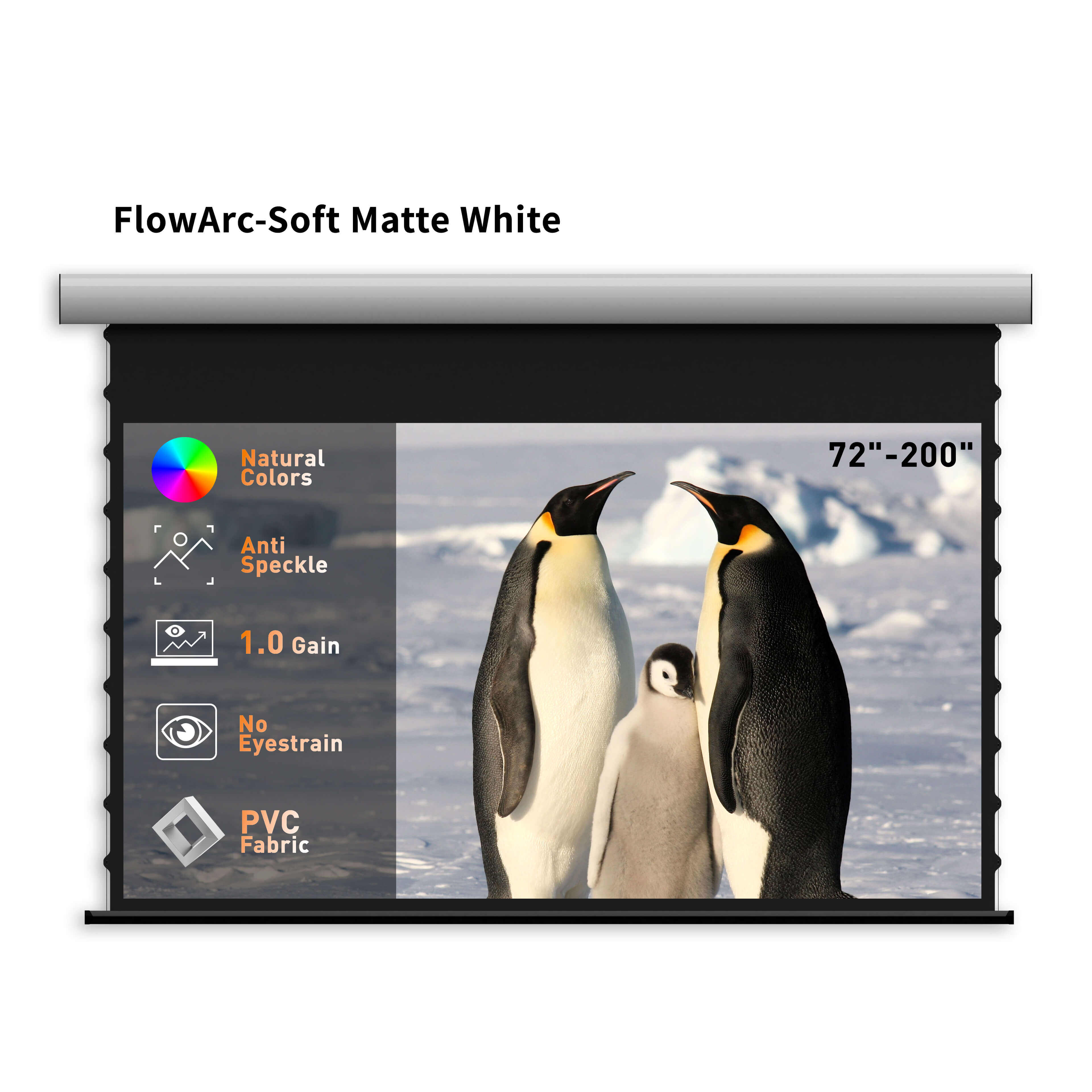

Wupro Cinema FlowArc Motorized Drop Down Screen Matte Fabric for UST & Long Throw Projector

Matte Fabric for Speckle-Free Effect

Ideal for High Lumens Laser Projector

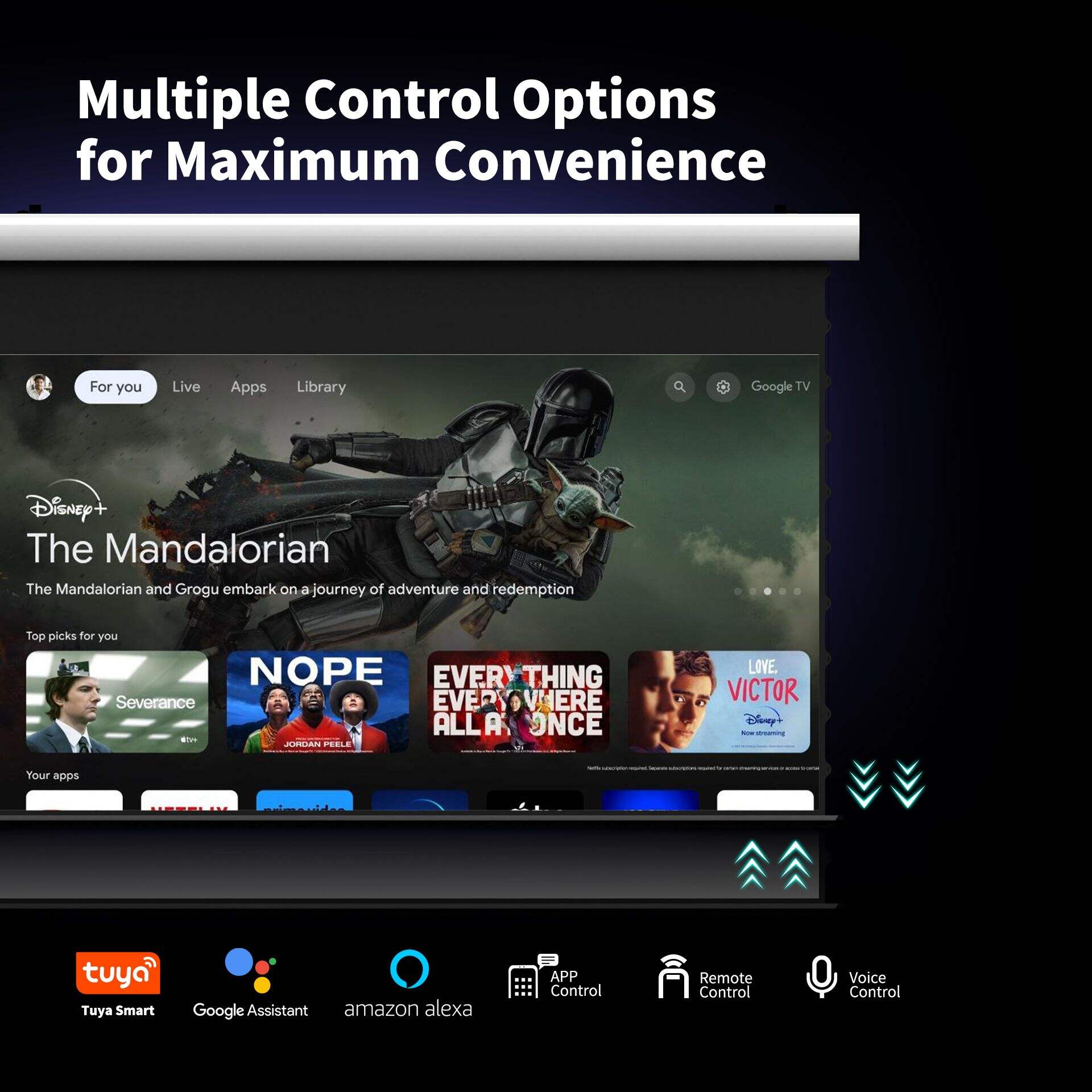

Easily Wired Panel or Wireless Remote

Support Amazon Alexa, Google Home, and Tuya Smart

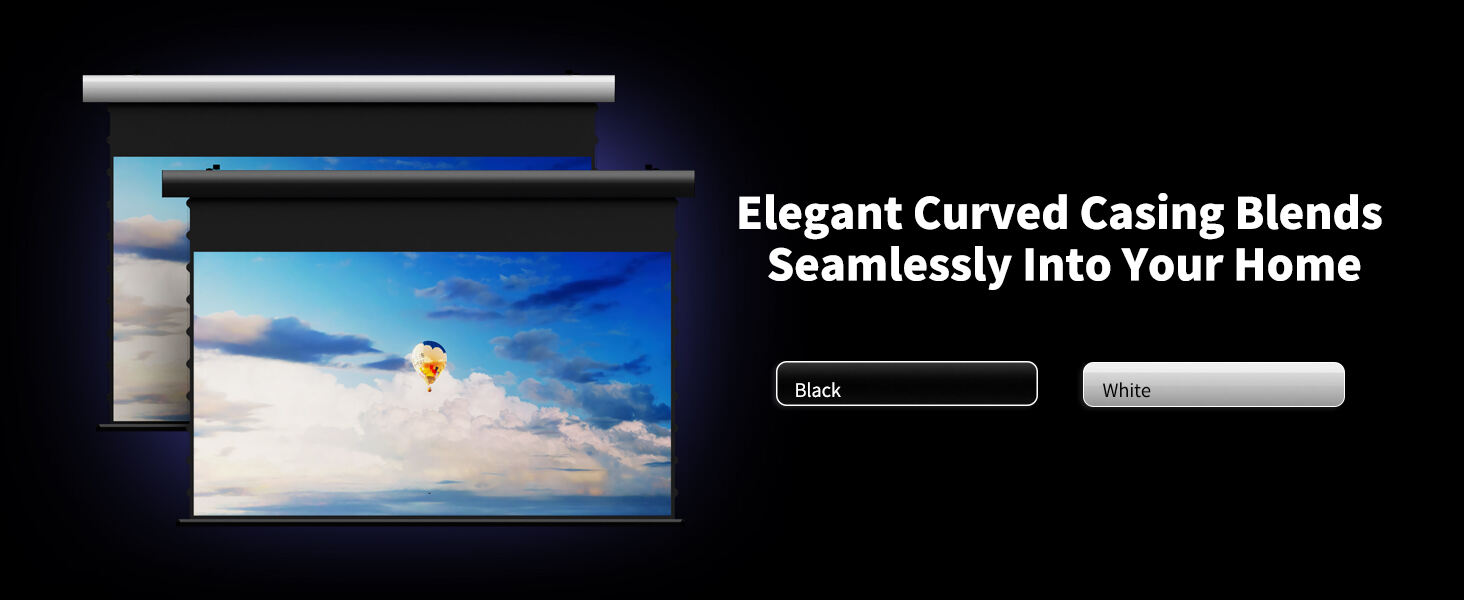

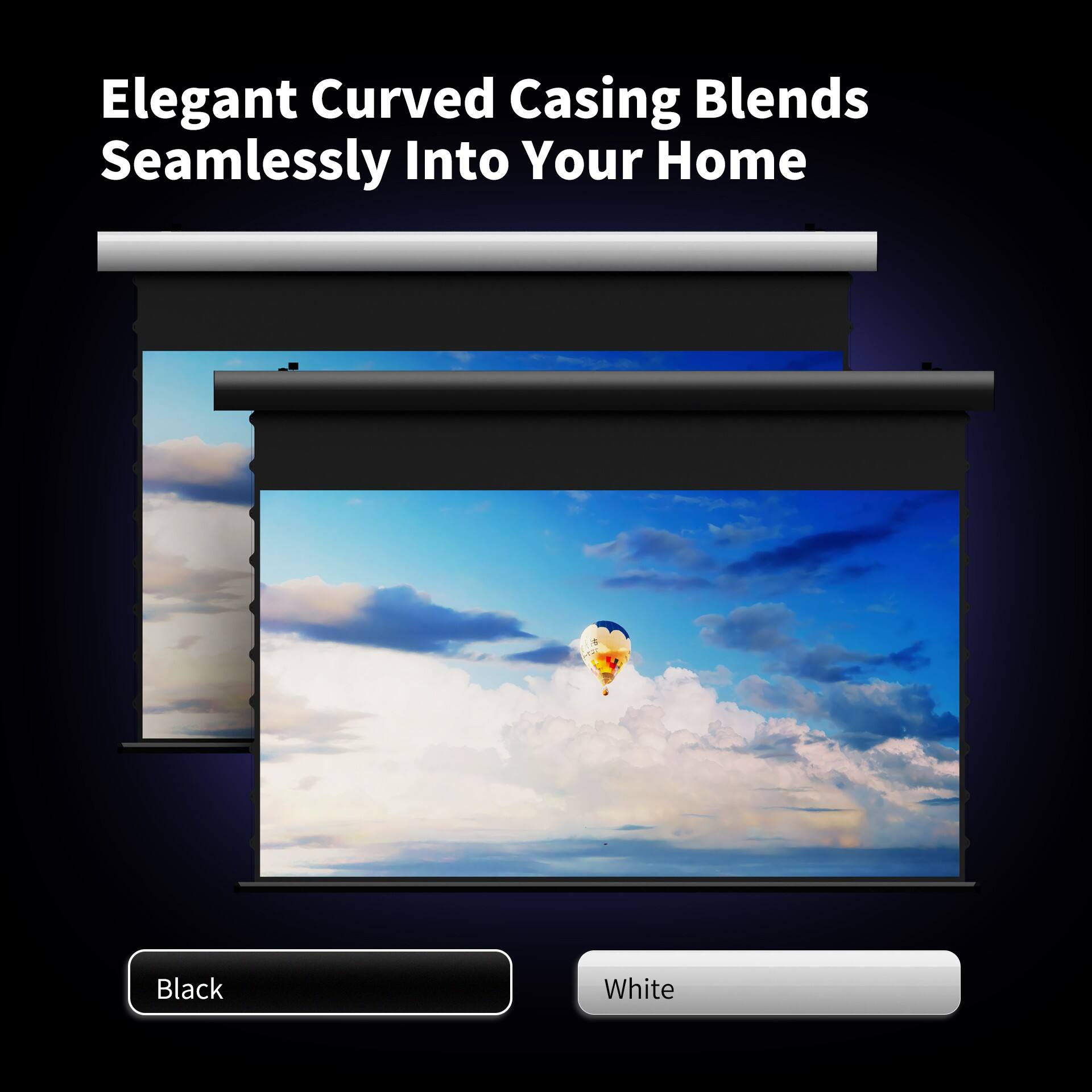

Luxurious Streamlined Casing, High-quality Aluminum Alloy

Versatile Sizes Available from 72” to 200”

Gain up to 1.0

Compact Packaging, Saving More

Powered and Silent Tubular Motor

Inquiry now
  • Introduction
  • More Products
  • Inquiry

Introduction

General Information

Place of Origin: China
Brand Name: Wupro Cinema
Model Series: FlowArc
Certification: FCC, CE, RoHS
MOQ: ≥1
Delivery Time: 5-7 days
Payment Terms: EXW, FCA, FOB, CFR, CIF, DAP, DDP
Supply Ability: 1,000 pcs / Month

Specification

Model Name Wupro Cinema FlowArc Smart Motorized Drop Down Screen
Model Series FlowArc
Mounting Base Yes
Hooks or Rigging Yes

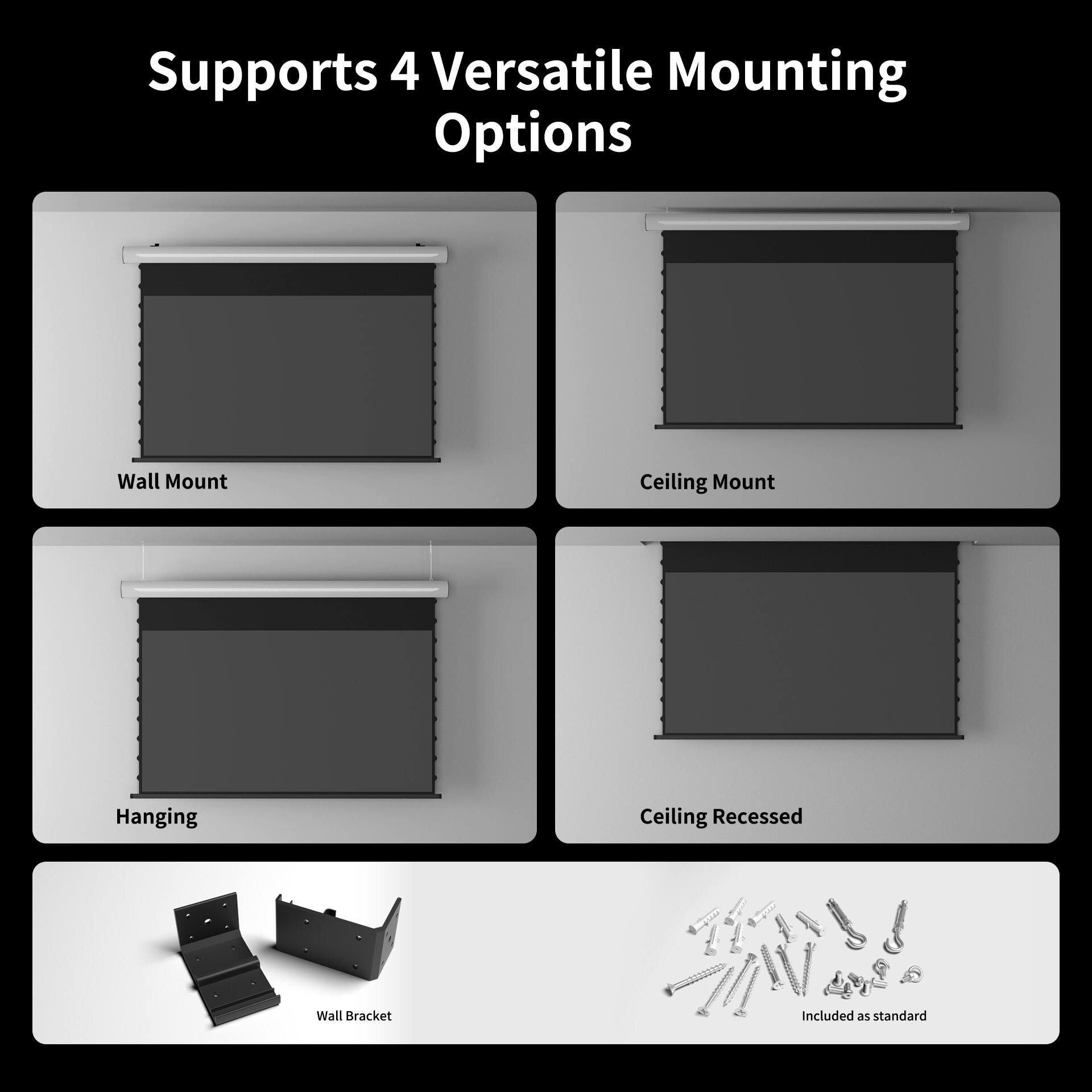

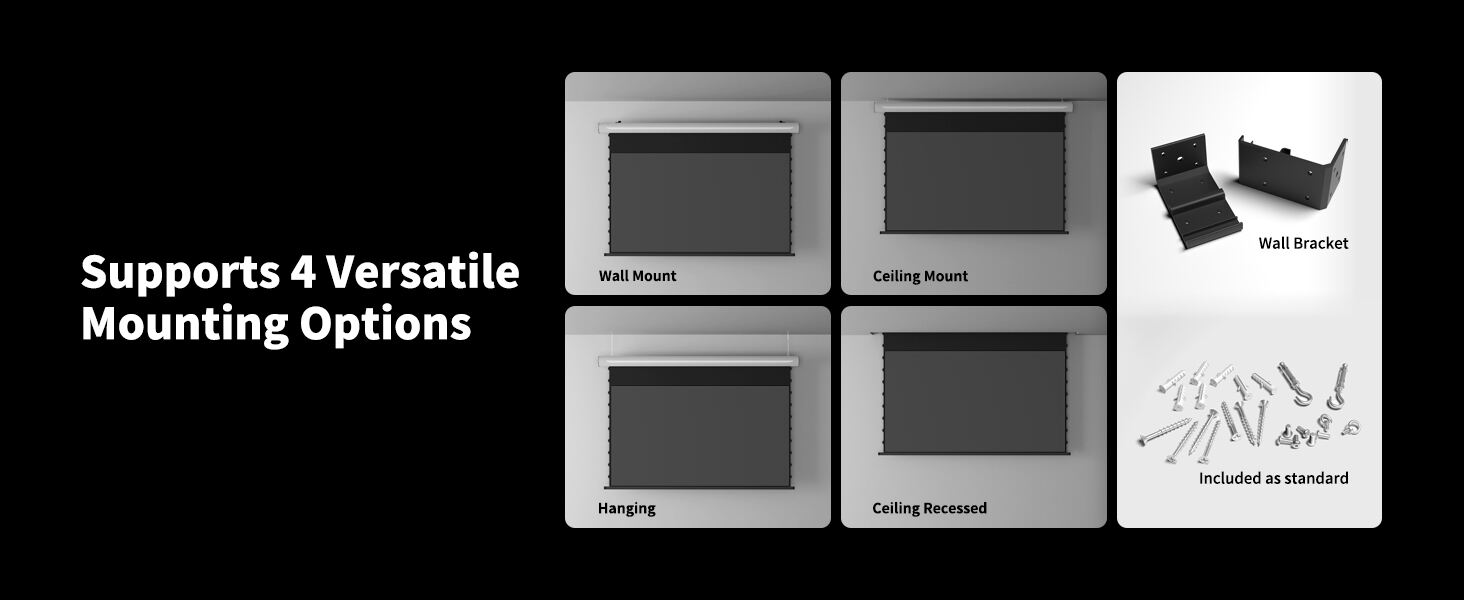

Installation Method Wall Mount / Ceiling Mount
Applicative Type Ultra Short Throw & Standard Throw
Control Method Remote Control / Control Panel / Voice Control
Tab-Tension Optional Based on Screen Fabric
Casing Aluminum Alloy
Material PVC
Color Based on Screen Fabric
Ratio 16:9 / 16:10 / 4:3
Thickness 0.32-0.49mm
Gain 0.6-1.8
ALR None
Contrast 1.3-1.5
Viewing Angle 160°
Black Border Yes
Type Tubular Motor
Rated Torgue 10 N.m
Rated Speed 17 RPM
IP Grade IP44
Noise Level ≤48 dB
Overheat Protection Automatically activate when operating continuously for 4 minutes
Power Supply 230V/50Hz, 0.485A,115W / 120V/60Hz, 1.1A,115W
Lifting Speed 6cm / S
Limit Control Max. Rising Position, Upper Limit & Lower Limit
Operating Temp. -20- 60℃
Smart Interaction Remote Control, Amazon Alexa, Google Assistant, Tuya Smart

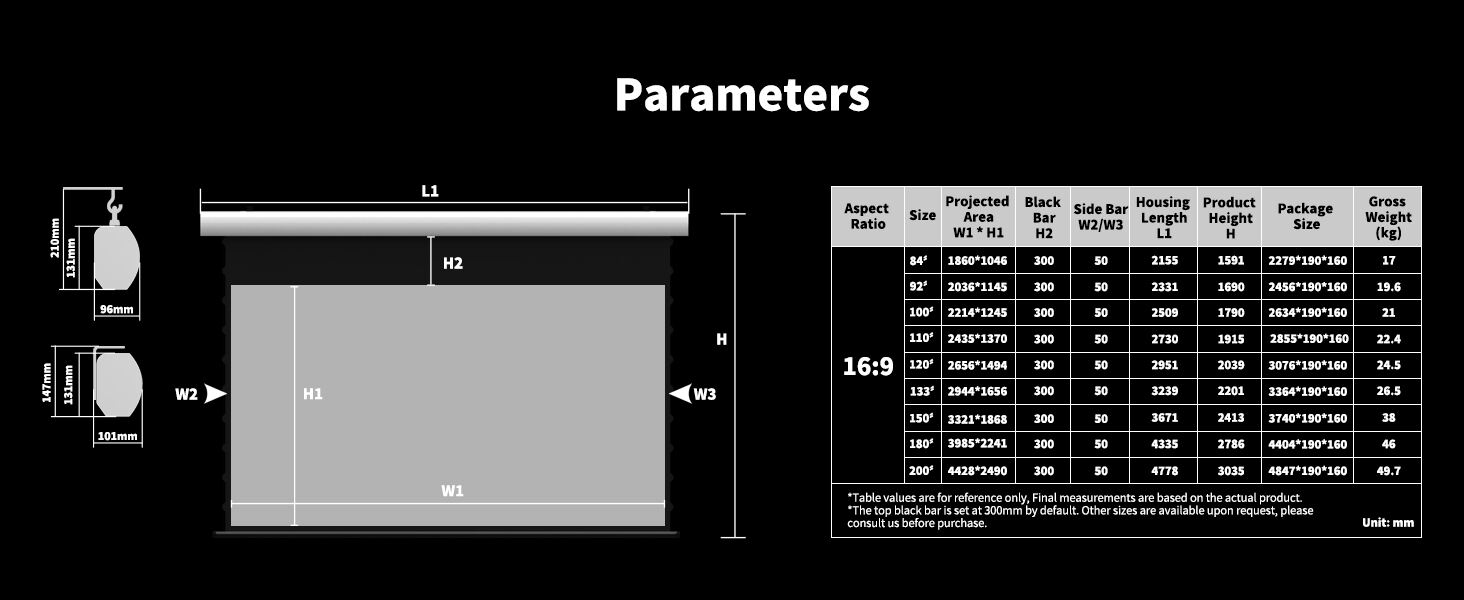

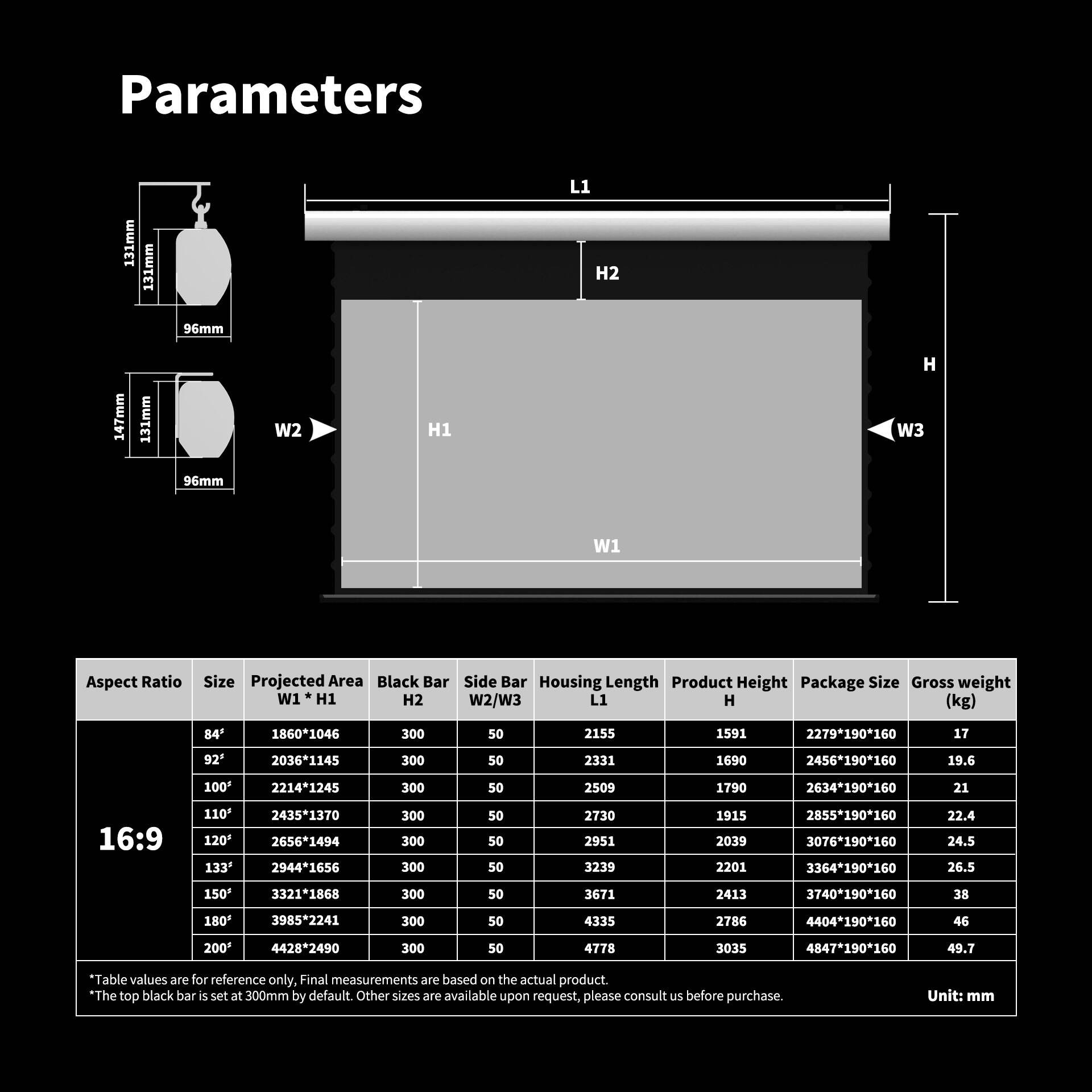

PRODUCT PARAMETER

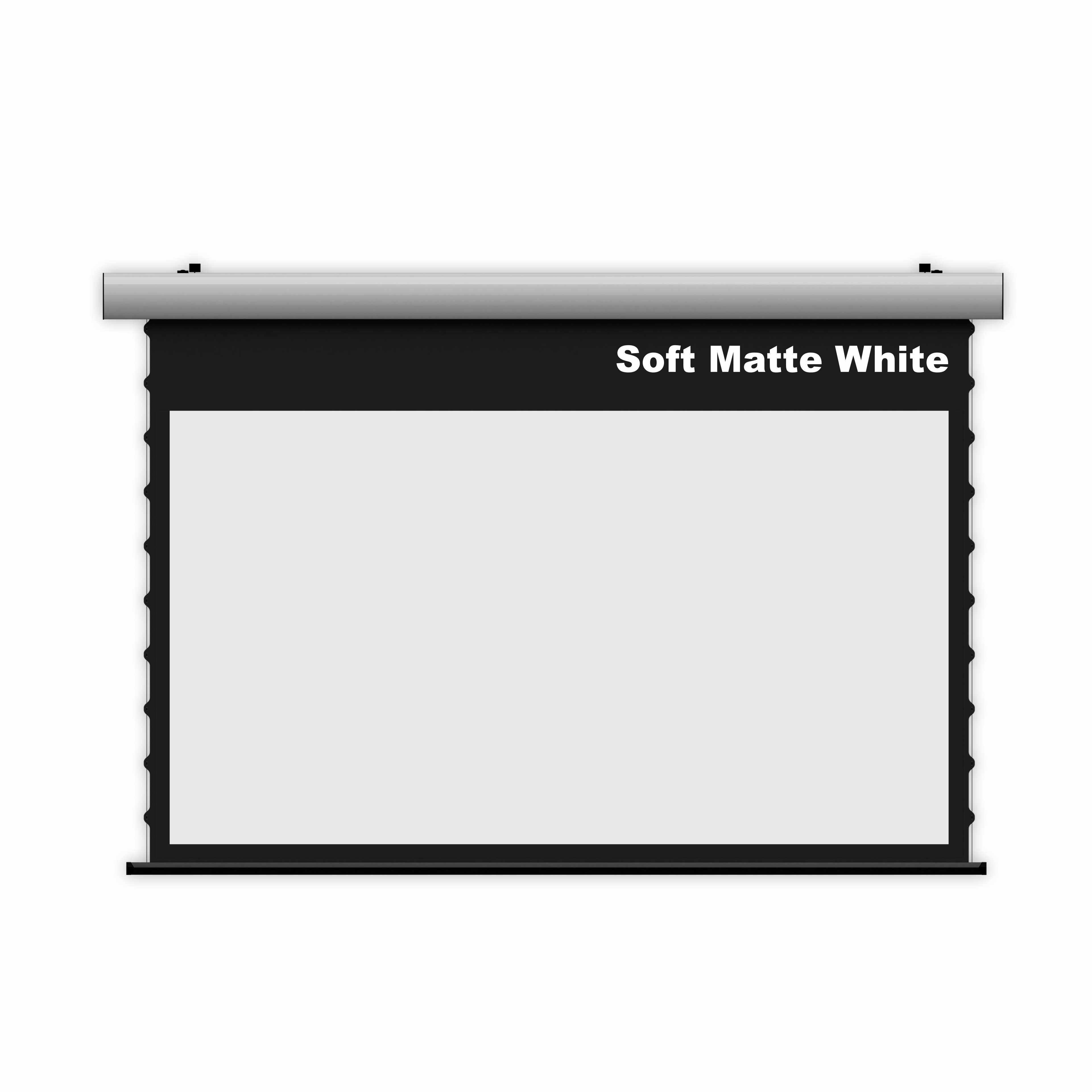

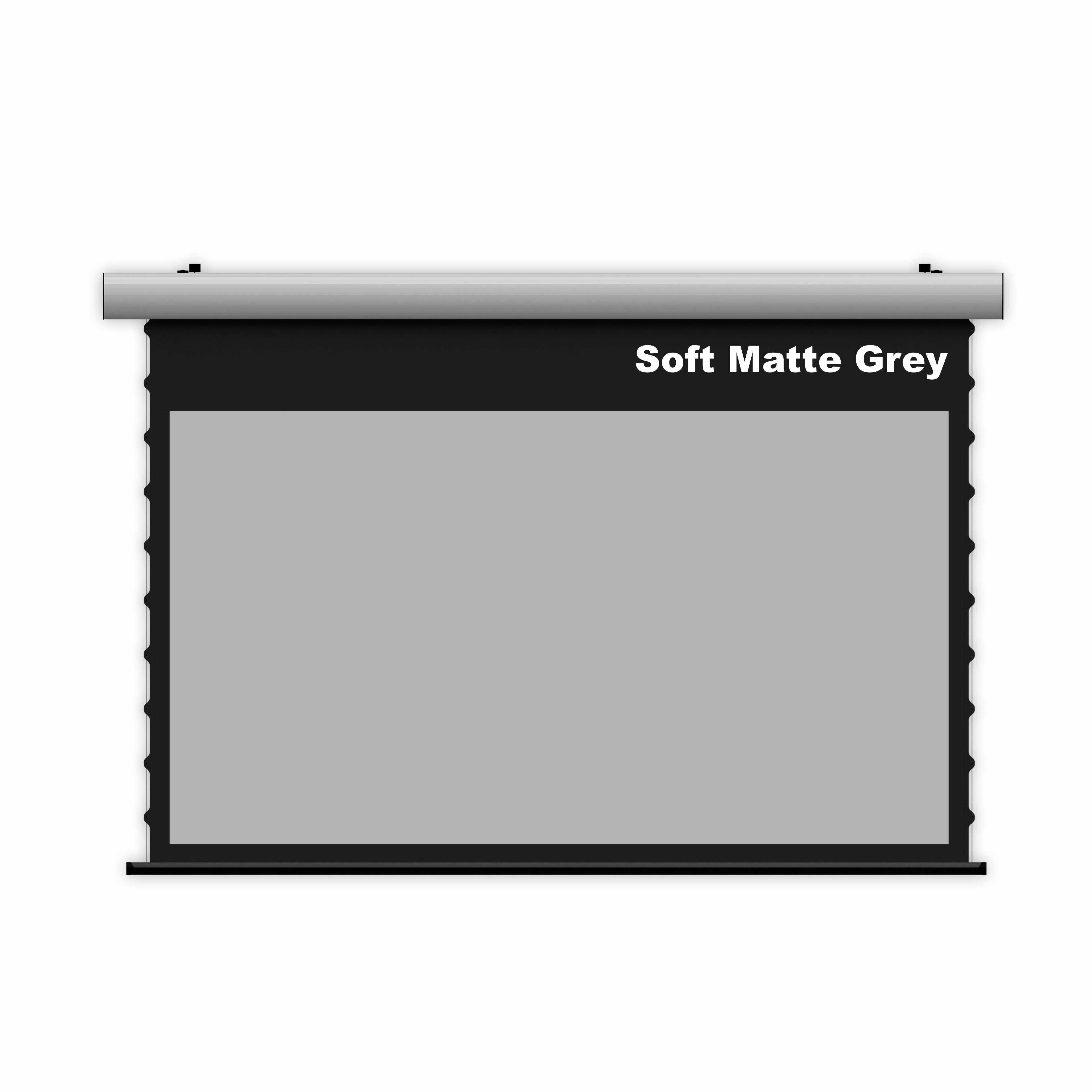

Tab-Tensioned(Soft Matte White/Soft Matte Grey)
Ratio Size(Inch) Projection Length (mm) Projection Width (mm) Upper Black Border (mm) Left & Right Border (mm) Bottom Black Border (mm) Product length (mm) Package Length (mm) Package Width (mm) Package Height (mm) Net Weight (kg) Gross Weight (kg)
16:9 84 1859 1046 300 50 35 2159 2279 190 160 14 17
16:9 92 2036 1145 300 50 35 2336 2456 190 160 15.5 19.6
16:9 100 2214 1245 300 50 35 2514 2634 190 160 17 21
16:9 110 2435 1370 300 50 35 2735 2855 190 160 18 22.4
16:9 120 2656 1494 300 50 35 2956 3076 190 160 20 24.5
16:9 133 2944 1656 300 50 35 3244 3364 190 160 22 26.5
16:9 150 3320 1868 300 50 35 3620 3740 190 160 33 38
16:9 180 3984 2241 300 50 35 4284 4404 190 160 41 46
16:9 200 4427 2490 300 50 35 4727 4847 190 160 43 49.7
