Advanced ALPD Laser Display Technology
0.23:1 Ultra Short Throw Ratio
4K UHD Display
Brilliant 300nit Brightness
4000:1 Central Contrast
A+ Grade Optics Design
Supports HDR10+, HLG decoding
THX® Image Quality Certification
DTS Virtual:X Technology
General Information
| Place of Origin: | China |
| Brand Name: | FORMOVIE |
| Model Number: | L206ACF |
| Certification: | CCC, HDMI, ESI, dts-HD, Dolby Audio |
| MOQ: | ≥1 |
| Carton Packaging: | 58x48.5x18.5cm/10.4kg |
| Delivery Time: | 5-7 days |
| Payment Terms: | EXW, FCA, FOB, CFR, CIF, DAP, DDP |
| Supply Ability: | 1,000 pcs / Month |
Specification
| Projection System | Brand | Formovie |
| Warranty | 1 years | |
| Movie effects | 2D; 3D | |
| Native Resolution | 4K UHD (3840x2160) | |
| Brightness | 300nit | |
| Picture | Contrast Ratio:4000:1HDR10Refresh Rate 60HzColor Space: 100%Rec.709 | |
| Projection Size | 40-200inch/recommended 80-150inch | |
| Projection Distance | 5-50cm80in-14cm/100in-24cm/120in-34cm/150in-49cm | |
| Throw Ratio | 0.23:1 | |
| Light Engine/lamp | Speckle freeLASER /ALPD 3.025000+hours of lifespan | |
| Display Type/lens | TI DLP /0.47" DMD | |
| Smart TV System | Menu Language | English ; Chinese |
| operating system | FengOS | |
| App Store&Smart Features | Aptoide TVYoutube/Wupro LiveOS | |
| CPU / GPU | ARM Cortex A53 | |
| RAM / Storage | 2GBDDR3/64GBhigh speed eMMC | |
| Keystone Correction | 8 point(picture shape&size adjustment byremotes, easier for user) | |
| Focus | Electric Focus | |
| Projection Mode | Destop:Front/RearCeiling Mout:Front/Rear | |
| Enhancements | Multiscreen,Screen Mirroing/Motion DetectionDiffuse reflection eye protectionSmart cooling,Real-time temperature control fan | |
| Sound | Speaker built-in | HiFi SpeaksersFull-range x 2 + Tweeter x 2 (30W in total)Audio codec: Dolby Audio / dts-HDMulti-purpose:Bluetooth speaker |
| Connectivity | Internet | Wi-Fi:2.4/5 GHz dual band, 802.11 a/b/g/n/ac |
| Bluetooth | 4.1 BLE | |

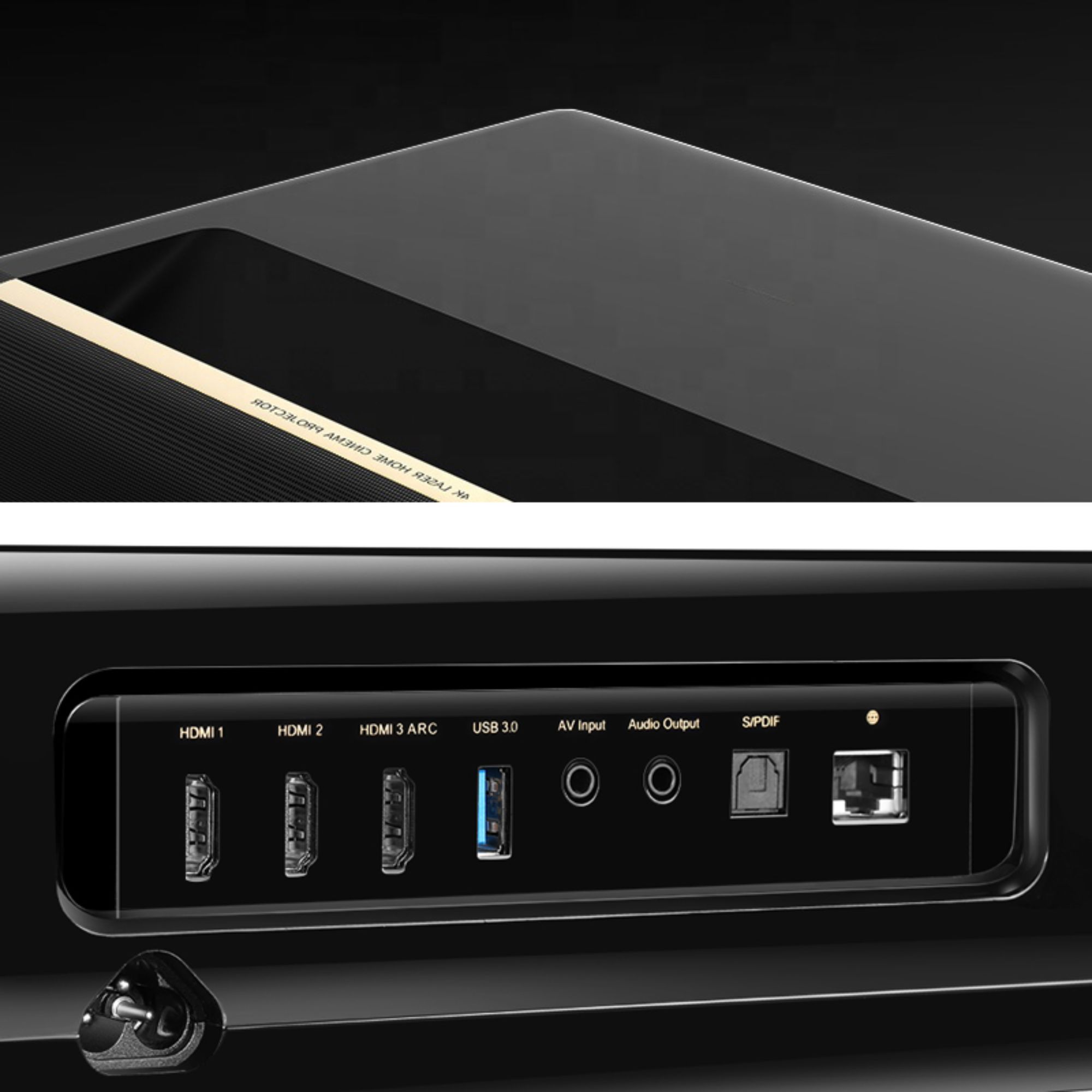

| Interfaces | Connection Ports | HDMI 2.0b: 2HDMI 2.0b ARC: 1USB 3.0: 1USB 2.0: 1Audio output: 1AV input: 1S/PDIF: 1Ethernet: 1 |
| Power | Plug Type | CN 3pin +Power converter |
| Input | 200–240V ~ 2A 50/60Hz | |
| Power Consumption | ＜300W | |
| Standby Power Consumption | ＜0.5W | |
| Built-in battery | NA | |
| Others | Noise | ≤32dB(movie modes）@Ambient temperature 25℃1M distance |
| Working Temperature/humidity | 0~40°C / 20～80% | |
| Storage Temperature | -20℃~ 55℃ | |
| Accessory | / | Bluetooth Remote: 11.5 m Power Cord: 1AAA Battery: 2Manual: 1 |
| Dimension/Weight | Product Size(cm) | 42*30.1*8.9cm |
| NW(kg) | 6.8 | |
| Carton Size(cm) | 58*48.5*18.5cm | |
| GW(kg) | 10.4 |
